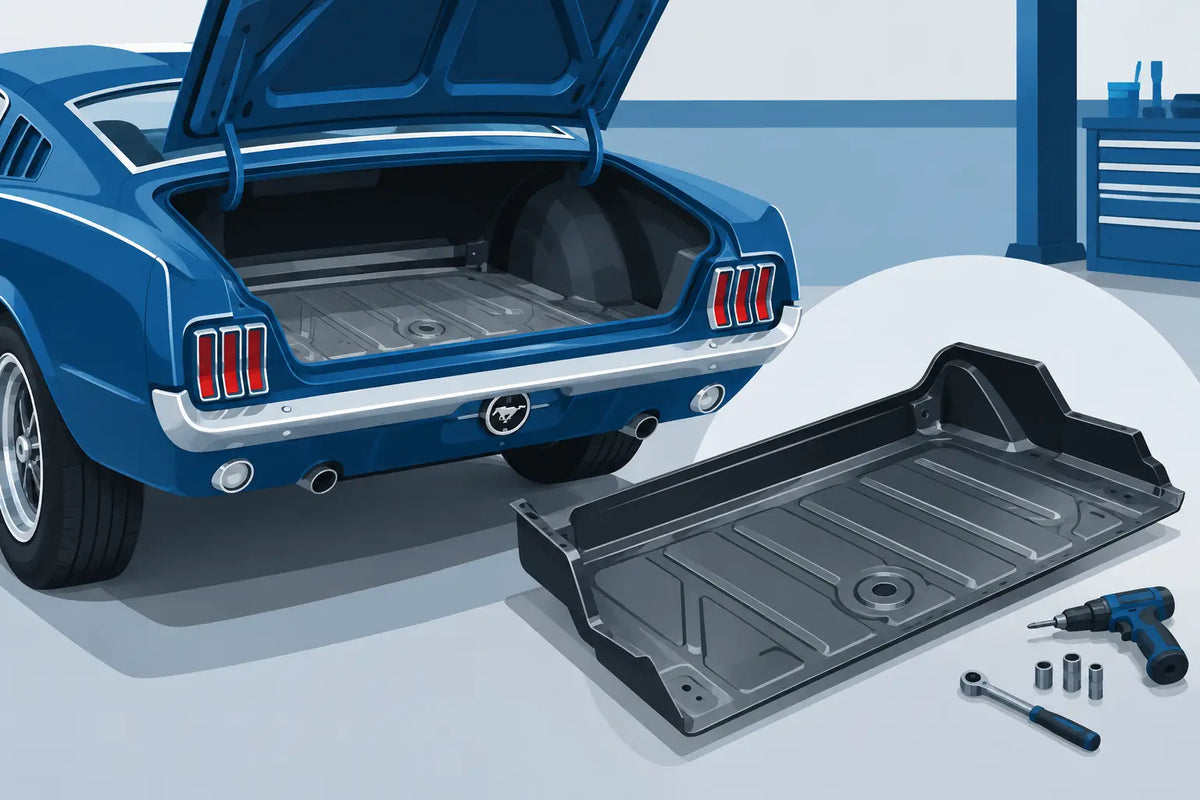

A soft spot under the trunk mat is rarely just a cosmetic problem. Water can sit in the low areas of a Mustang trunk for years, working through the floor, extensions, drop-offs, rear frame rails, and lower quarter panels. A proper Mustang trunk floor replacement starts by finding every weak section before cutting out the first piece of steel.
The goal is not to cover rust or install a patch that looks good from above. The goal is to restore solid metal, correct drainage, and the factory shape that supports the trunk, fuel tank area, and rear body structure. Whether you are building a weekend driver or repairing a customer vehicle, doing the prep work up front saves time when the welder comes out.
Inspect the Full Rust Area First
Pull the trunk mat, spare tire, fuel tank, rear bumper if needed, and anything else that blocks access to the underside. Clean off loose scale, seam sealer, undercoating, and old repairs. Rust often travels farther than it first appears, especially along seams where the trunk floor meets the wheel housings, quarter panels, and rear crossmember.
Probe suspicious areas with a pick or screwdriver, but do not stop at the holes. Thin steel around a perforation will not hold a reliable weld. Look from both sides of the panel and inspect the rear frame rails and spring mount areas. If the rails are compromised, repair those structural pieces before installing the trunk floor. A new floor pan welded to rotten supporting metal is not a lasting repair.
Water entry has to be addressed as part of the job. Common trouble spots include leaking rear window trim, quarter window seals, taillight housings, trunk weatherstripping, deck lid adjustment, and failed seam sealer. If the leak remains, even premium replacement steel will be back in the same condition years later.
Choose the Right Mustang Trunk Floor Replacement Panel
Panel selection depends on the extent of the rust and the generation of Mustang. A localized repair may only need a trunk floor patch section. Rust concentrated at the outer edges can call for trunk floor extensions or drop-offs. When the center floor and multiple seams are damaged, a larger stamped trunk floor panel is usually the cleaner, stronger choice.
Do not buy a small patch simply because it costs less if the surrounding panel is thin or heavily pitted. Every extra butt weld adds fitting time and creates another area that needs corrosion protection. A larger panel can reduce fabrication work and preserve the correct stamping, contours, and drain locations.
Fitment matters as much as panel size. Mustang body changes can be significant between years and body styles, so verify the exact year range, fastback, coupe, convertible, and related panel application before ordering. Machine-formed steel repair panels give you a better starting point than flat sheet metal when the repair needs factory-style ribs and contours.
C2C Fabrication offers vehicle-specific steel repair panels built for the kind of rust repair that requires solid fitment, not guesswork. Before starting, compare the new panel with the vehicle and confirm its flanges, braces, and stamped details match the section being removed.
Support and Measure Before Cutting
A trunk floor may look like a simple horizontal panel, but it ties into several parts of the rear body. Measure the trunk opening, wheel housing spacing, frame rail spacing, and location of braces before removing large sections. Take photos from above and below. Record where factory spot welds, seams, drain holes, and brackets are located.
If quarter panels, taillight panels, or rear frame rails are also being repaired, brace the body as needed before cutting. This is especially important on a car that is already stripped down or sitting on a rotisserie. Support the vehicle at proper structural points so the shell is not flexing while you fit replacement metal.
Use the replacement panel as a guide, but leave extra original metal until you have confirmed where the cuts belong. Cutting too much too soon turns a straightforward installation into a fabrication project. It is easier to trim a little more metal than to rebuild an edge that should have remained.
Remove the Damaged Metal Cleanly
Drill factory spot welds where the old trunk floor overlaps adjacent panels. A spot-weld cutter helps separate layers without damaging the metal underneath. Use a cutoff wheel or air saw for the main cuts, keeping heat low and staying clear of areas you intend to retain.
Remove the floor in manageable sections rather than forcing out one large piece. This gives better access to hidden seams and helps protect nearby panels. Once the damaged steel is out, clean every mating surface to bare metal. Repair any weak flanges, braces, or rail sections before test-fitting the new floor.
This is the point where shortcuts show up. Rust left inside a lap joint, old seam sealer trapped behind a flange, or pinholes in a wheel housing will come back later. Clean, solid metal is what allows weld-through primer, plug welds, seam sealer, and coatings to do their jobs.
Test-Fit Until the Panel Sits Naturally
Set the new trunk floor in place and clamp it along all mating edges. The panel should sit against the surrounding structure without being pulled into shape by a row of clamps. Check the trunk opening, fuel tank opening, rear body panel area, extensions, and wheel housings before drilling any plug-weld holes.
A few small adjustments are normal. Stamped repair panels may need edge trimming or minor flange work depending on previous repairs and production tolerances. Major gaps, twisted contours, or holes that do not line up are signals to stop and recheck the application, the remaining original metal, and the fit of related panels.
Mark all plug-weld locations while the panel is clamped in place. Match the original spot-weld pattern where practical, especially along structural seams. Drill plug-weld holes in the replacement panel, then remove it one more time to apply weld-through primer to the hidden mating surfaces.
Weld in a Controlled Sequence
Start with a few tack welds at key reference points, then check alignment again. Once the panel is locked in the right position, make plug welds through the predrilled holes to duplicate factory spot welds. For butt-welded seams, use short, spaced tacks and move around the panel to control heat.
Do not run long continuous beads across thin sheet metal. Excess heat warps the floor, burns protective coatings, and creates more grinding work. Let each area cool between welds. A solid series of properly spaced tacks can create a strong seam without turning a trunk floor into a warped oil can.
Grind welds only as much as needed for fit, finish, or seam sealing. Over-grinding weakens the repair and can expose pinholes. Inspect both sides of every weld. If a plug weld did not fully fuse to the panel behind it, fix it now rather than burying it under seam sealer and paint.
Seal and Protect Both Sides of the Repair
Fresh steel needs protection before the car sees moisture again. After welding and cleanup, coat bare areas with epoxy primer or another compatible corrosion-resistant primer. Apply seam sealer to factory-style joints, lap seams, and any areas where water could work between panels.
The trunk side needs a durable finish that holds up under cargo, mats, and occasional moisture. The underside needs coating that can handle road debris, spray, and temperature changes. Treat enclosed areas, such as frame rails and overlapping flanges, with cavity wax or another internal corrosion protection product after the exterior coatings have cured.
Keep drain paths open. A trunk floor that is perfectly welded but cannot drain will hold water again. Reinstall grommets, plugs, and weatherstripping correctly, then test for leaks before putting the interior back together. A controlled water test around the rear glass, deck lid, and taillights is cheaper than discovering a leak after the trunk has been refinished.
Know When a Bigger Repair Is the Better Repair
A patch panel is the right answer when the surrounding steel is truly sound and the damage is confined. A full trunk floor replacement makes more sense when corrosion has reached multiple seams, the center section is thin, previous patches are failing, or the original stampings are beyond saving.
There is a trade-off. Larger panels cost more and require more disassembly, but they can deliver a cleaner repair with fewer seams and better long-term durability. For a body shop, that can mean more predictable labor. For a home builder, it can mean spending a weekend fitting one correct panel instead of months chasing rust around a series of small patches.
A Mustang trunk floor repair is one of those jobs where solid steel, careful fit-up, and proper corrosion protection matter more than rushing to see new paint. Build the foundation right, and the rest of the restoration has something dependable to sit on.
