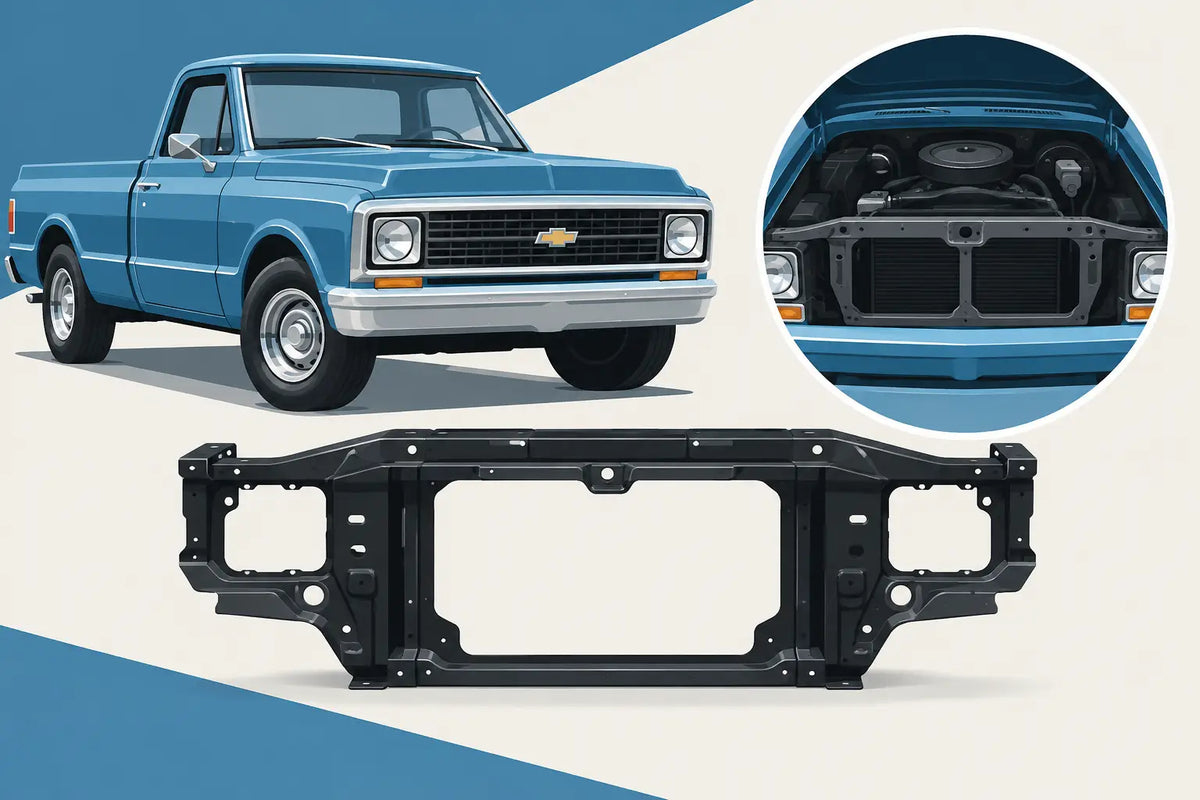

A Chevy C10 radiator support replacement is not just an engine-bay cosmetic repair. This panel carries the radiator, helps locate the front clip, supports the grille area, and affects how the hood, fenders, and core support sheet metal line up. When rust takes hold at the lower mounts or side braces, bolting in a new radiator may only hide the real problem.
On a working truck or a full restoration, the right repair starts with an honest look at the support, its mounting points, and the condition of the surrounding front-end metal. A solid replacement support gives the cooling system and the whole front clip a dependable foundation.
When Does a C10 Radiator Support Need Replacement?
Surface rust by itself does not always call for replacing the entire panel. If the steel is still thick, the mounting holes are round, and the lower channel is structurally sound, cleaning, treating, and refinishing the support may be the right move. But C10 radiator supports commonly rust from the bottom upward, where moisture, road debris, and battery acid can sit for years.
Replacement makes more sense when the lower crossmember is soft, the radiator mounting areas have thinned or cracked, or the body-mount locations are collapsing. Look closely behind the fenders and at the boxed sections that are hard to see with the grille installed. Rust often spreads farther than the visible bubbles suggest.
Damage is another reason to replace the panel. A bent support can leave the radiator sitting crooked, push the grille out of position, or create uneven hood and fender gaps. Previous collision repairs can also leave a support twisted enough that no amount of shimming will make the front end fit correctly. Starting with straight, properly formed steel saves time during final assembly.
Match the Radiator Support to Your C10
Chevrolet C10 trucks changed over the years, and front-end parts are not interchangeable simply because they came from a truck with a C10 badge. Square-body trucks, 1967-1972 Action Line trucks, and earlier C/K models use different front clip designs, mounting arrangements, grille openings, and core-support dimensions.
Before ordering a replacement, confirm the truck's model year and inspect the current support. Pay attention to radiator width, side mounting tabs, headlight bucket areas, hood latch provisions, and the placement of body-mount holes. If the truck has been modified with a later radiator, aftermarket air conditioning, a big-block, or a non-stock grille setup, measure those components before committing to a panel.
It also pays to identify whether you need a complete support or related pieces around it. Rust at the core support often travels into inner fenders, fender braces, battery trays, lower valances, and front cab mounts. Replacing only the support can be practical, but replacing adjoining rusted panels while the front clip is apart usually produces a stronger, cleaner repair.
C2C Fabrication focuses on machine-formed steel replacement panels built for vehicle-specific fitment. Correct application matters because a panel that is close is not good enough when the radiator, hood, grille, and fenders all depend on the same mounting structure.
Plan the Job Before Removing the Front Clip
The best time to document the original alignment is before taking anything apart. Photograph the hood-to-fender gaps, grille position, radiator mounts, shim stacks, wiring routes, and latch hardware. Label bags of bolts and retainers as they come off. On an older C10, hardware may have been changed more than once, and having a reference saves guesswork later.
Support the truck safely on level ground. If the body mounts beneath the core support are being replaced, keep the cab and frame stable before loosening anything. Disconnect the battery, drain the cooling system, and remove the radiator and fan shroud as needed. Protect the fins if the radiator will be reused, because even a good radiator can be damaged easily during front-end disassembly.
For a clean installation, remove enough parts to access the support without forcing it around the fenders. That can mean the hood, grille, bumper, inner fenders, outer fenders, and radiator. The exact sequence depends on the year and condition of the truck. A truck already stripped for paint makes the job straightforward; a complete driver with solid original fenders may call for a more careful, less invasive approach.
Expect seized bolts. Penetrating oil, heat used with care, and replacement hardware are often part of a rust-repair job. Do not let a frozen fastener bend a reusable bracket or tear thin surrounding metal. Cut and replace hardware when that is the cleaner option.
Chevy C10 Radiator Support Replacement: Installation Steps
Once the old support is out, clean the frame mounting surfaces and inspect them closely. Remove loose scale, dirt, and old rubber fragments from the mount areas. Check the frame horns, front crossmember, and nearby brackets for cracks or rust damage. There is little value in installing a new support over weak mounting points.
Set the replacement support in place with the correct rubber cushions, sleeves, and bolts, but leave the fasteners loose. Install the radiator temporarily if possible, along with the grille components and at least a few fender bolts. This is the stage where patience matters. The support must be positioned to make the entire front end work together, not merely tightened where it first lands.
Use the hood and fenders to establish the final position. Check the gap along both fender edges, the hood-to-cowl relationship, grille centering, and hood latch engagement. Add or remove shims only as needed. If the gaps are drastically uneven, stop and find the cause. A bent fender brace, damaged frame mount, incorrect hardware, or previously altered sheet metal can create an alignment problem that shims alone will not solve.
After the panels are aligned, tighten the core-support mounting hardware and recheck everything. Install the radiator with properly fitted cushions so it is isolated from vibration and not rubbing against the support. Reconnect hoses, wiring, condenser mounts, and any transmission-cooler lines carefully. Before reinstalling the grille and bumper completely, fill the cooling system, run the engine to operating temperature, and inspect for leaks or contact points.
Protect the New Steel From the Same Problem
A new radiator support is only built to last if water and debris are not allowed to sit inside it. Prime and paint bare steel thoroughly, including lower channels, seams, bracket edges, and hidden surfaces. Seam sealer belongs where the factory design used it or where overlapping panels can trap moisture. Do not seal over rust or dirty metal.
Coating the inside of boxed sections with cavity wax or another corrosion preventive is worthwhile, especially for trucks driven in rain, winter conditions, or coastal areas. Keep drain paths open. A support that holds mud and water at the bottom will rust again no matter how good the outer paint looks.
While access is open, inspect the radiator hoses, mounts, fan shroud, hood latch, grounds, and headlight wiring. Replacing worn parts now is easier than pulling the grille apart later. This is also a good time to correct missing splash shields or damaged inner-fender seals that allow road debris into the engine bay.
A properly fitted Chevy C10 radiator support restores more than the area behind the grille. It gives the truck a straight front clip, stable cooling-system mounts, and solid steel where years of rust may have left the structure compromised. Take time to verify fitment, test-align the panels, and protect every hidden edge before final assembly. That is how the repair stays fixed.
